Event Concert Stage Platform For Weddings

SHIZHAN 18mm thick Mobile Portable Glass Stage is often used in weddings, indoor and outdoor pool parties and various light shows to present a perfect performance.It is popular for its sturdiness and low price.

1.Introduction

  Adjustable aluminum outdoor concert stage has been widely used in: concert performance/fashion show /Dj performance/festival performance/wedding events and other activities.



  Our aluminum stage can be divided into: acrylic stage/portable stage/glass stage/simple assembly stage.



Platforms:
• Lightweight and compact for easy setup, transport and storage.
• Water resistant Industrial finish.
• An aluminum lattice structure construction with a weight capacity of up to 800 KGS/sq. meter.


Legs:
• Lightweight legs can be adjusted at 24, 32, 40 or 48 inches (60, 80 100 and 120cm) using interchangeable leg extension tubes.
• Legs are shared between adjacent platforms.
• Accessories such as rubber mats, slope adjustment wedges and spikes for soft ground and slope applications are available.


Side Braces:
• Lightweight and strong tubular aluminum construction.
• Side Braces are shared between adjacent platforms.

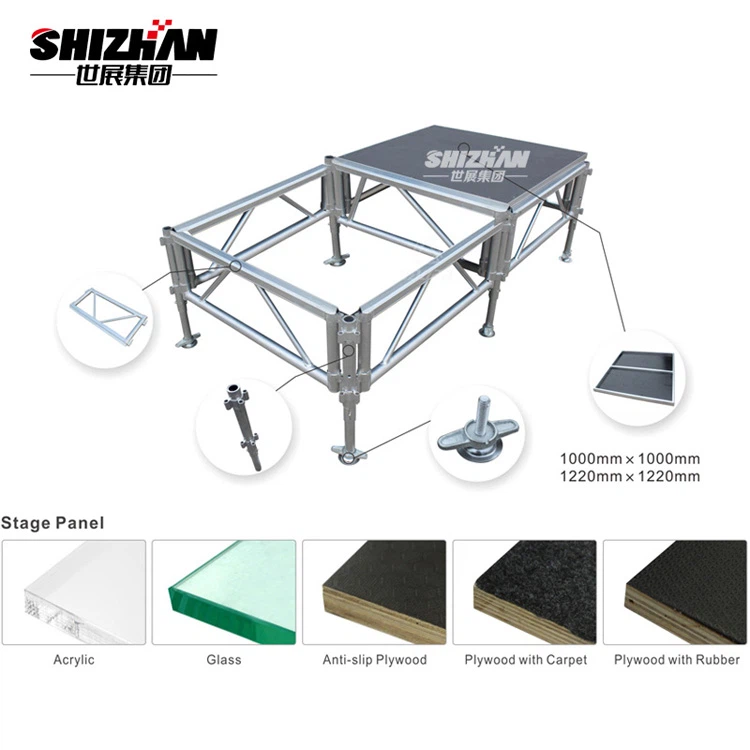

stage

2.Truss specifications

Item Name

Aluminum Outdoor Large Event Truss Display Outdoor stage

Material

Aluminum alloy 6061-T6/Plywood/PVC/Acrylic/Glass

Shape

square, Triangle, round or customized

Size

2m*1m,1m*1m,1.22*2.44m,1.22*1.22m ect

Leg main tube

50x3mm

Brace tube

50x2mm

Frame size

78x43x3mm

Load capacity

750kg/sqm

Platform thickness

18mm glass stage board

Application

Events,party,concert,exhibiton ,catwalk fashion show,school,

church,wedding,etc.

Delivery Time

Depends on order qty



Dimension

Max. Loading

Max. Height

Min. Height

1m*1m

1000kg

1200mm

200mm

1.22m*1.22m

1000kg

1200mm

200mm

1m*2m

900kg

1200mm

200mm

1.22*2.44m

900kg

1200mm

200mm



3.Details image

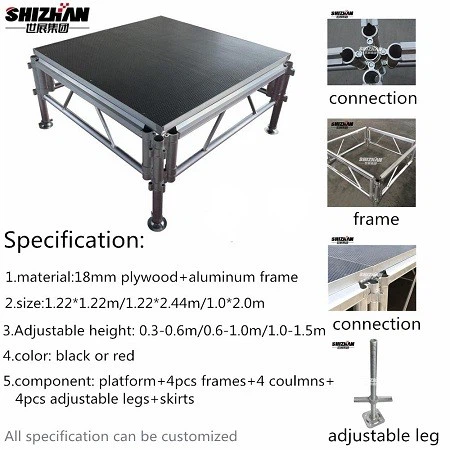

assembly stage

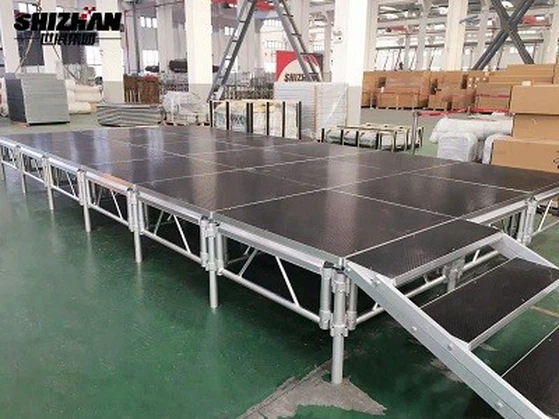

                                           a6548b



  Aluminum alloy assembly stage is a more commonly used activity stage, which is a better stage in domestic and foreign markets. Disassembly design, beautiful appearance, easy to build, adjustable height, strong stability. Added effect to the show. Easy to install and disassemble on site, improve the efficiency of installation, safe and durable stage performance. The stage is 1.22M in length and 1.22M in width and 1.22m in height. There are 4 adjustment ranges for the stage, and it can be splice with any unit, which is suitable for different terrain environment.



  The frame of the stage table is welded with high-quality aluminum alloy material, and the structure is beautiful and generous. T-shaped grooves are designed around the frame to facilitate users to decorate the stage.



  Can also be applied to aluminum glass stage, stage countertop installation of advanced non-slip materials, both beautiful and elegant and safe and reliable, adjust the height and specifications of the foot can be freely selected according to the needs of users, the board thickness of 18mm, the use of export anti-skateboard, good quality, better effect, while equipped with stage stairs, can be placed anywhere on the stage. In order to facilitate the performance of performers on the stage, the overall effect, quality assurance, can also be customized size.





4.Product Application

k





portable stage 11

  When it comes to aluminum adjustable stage there are many opportunities where you can use our aluminum truss system, aluminum lighting truss and portable stage systems , aluminum roof truss system for suspending lights, sound equipment, cameras and other items.


Our aluminum adjustable stage stand for versatility with indoor & outdoor applications, compactness and high tensile strength. These features allow us to provide you with world-class products.

  The conventional specifications of the aluminum alloy stage are: 1.22*1.22 square, 1.22*2.44 rectangle, and other sizes can be customized. The force is more uniform, the panel is made of architectural plywood 18 mm thick (double clad board, waterproof on both sides).

  Our experience gives us a big head start to provide you with high-quality event portable stage that has been used all over the world for more than 6 years. We take immense pride in quality management as safety and durability are basic values for successful set up of any event.

Every project undergoes static calculations and truss evaluations to ensure we meet requirements given by certifications bodies we are partnered with. Wedding platform is easily assembled or disassembled therefore we shorten on-site preparations and training of your stage crews.

  The stage board uses 18mm thickness: wood plywood, bamboo plywood, fireproof and waterproof board, tempered glass, plexiglass, stage feet and other accessories are all made of national standard aluminum alloy 6061. Stage components: stage panel, stage frame, stage support piece, lifting sleeve adjustment, adjustable foot cup.

  The material used for the stage support is the national standard aluminum alloy 6082-T6, which has good safety, large structural strength and large load-bearing force, and fully meets the requirements of the stability and load-bearing required by the stage. The stage support consists of three parts.





product-850-1875

product-800-1109
