Aluminum Stage

Why Choose Us

One-stop Solution

We are specialized in performance and construction equipment, main products include aluminum pallets, aluminum Truss, aluminum Stage, Barrier, Scaffolding and Bleacher, we can provide the complete solution from project design, product research and development, to production and erection instruction.

Advanced Equipment

In recent years, our company has import a series of advanced equipment Production line including Aluminum Extrusion Line, CNC Machining Center, Fiber laser marking machine,laser welding machine,universal material testing machine and 3 D printer.

Custom Service

Adhering to the business principle of mutual benefits, we have had a good reputation among our customers cause of our high quality products, perfect customer services,strong technical support, on time delivery, and also the competitive prices.

Quality Control

The company has attained various certifications such as ISO9001 Quality Management System Certification, SGS,TUV,CE.

What is Aluminum Stage

In short, the aluminium stage is an essential piece of equipment used to highlight the atmosphere of an event. When the stage is not in use, the stage can always be recycled to increase the area used for the stage. What's more, because of its light weight, the aluminium stage can be transported at a reduced cost.

First 12 3 4 Last 1/4

Product Advantages

Event Concert Stage Platform For Weddings

Lightweight

The weight is half lighter than the traditional iron truss, which saves more cost and energy for construction and transportation.

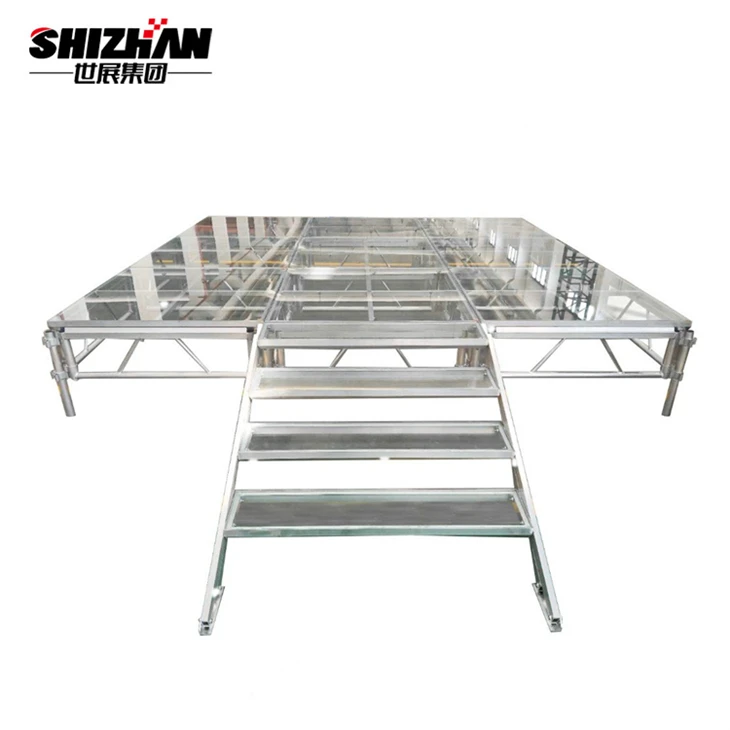

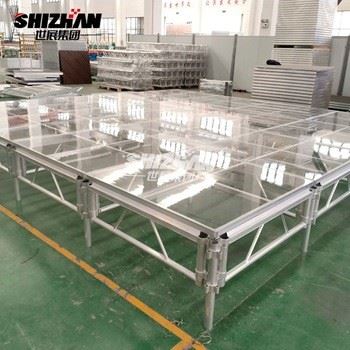

Aluminum Stages For Wedding Acrylic Platform

Corrosion resistance and durability

Compared with the iron truss, the aluminum alloy light truss is made of 6061-T6 aluminum alloy, which has excellent anti-corrosion performance and has a service life of more than 10 years.

Compressive ability

Generally, the average load-bearing capacity of Aluminum stage lighting truss can reach more than 600kg. Meet the needs of large-scale audio equipment for various performances and music.

Product Structure

● Base: Mainly used for ground stabilization.

● Reverse head: It is used when the building height is high, and the function of erecting a higher height can be achieved through the reverse head.

● Inclined support: used to support the stability of the entire system of aluminum alloy truss.

● Square sleeve: The height of the beam can be easily adjusted through the square sleeve.

● Cross arm: At the top of the truss, it is mainly used for hanging the hoist.

● Hoist: It can be divided into two types: hand chain and electric hoist, used for lifting aluminum alloy truss.

● Sling: the tie that connects the hoist to the aluminum alloy truss.

Process

First place the four bases in a rough position on the ground, and adjust the lower legs to make them on a horizontal plane.

Insert the lower part of the diagonal support into the outer side of the base on the four corners, insert 2 in each corner, a total of 8.

Fix the reverse head on the base with screws, pay attention to the direction of rotation of the reverse head to be the same as the one marked in the figure.

Put a square sleeve on the reverse head.

Connect the beams on the ground.

Butt-connect the two ends of the beam with the two square sleeves on both sides. At this time, the beam part is assembled on the ground.

Connect the column truss while lying flat, then screw one end to the reverse head, and the other end to the cross arm. At the same time, the hanging gourd and the cross arm are connected. The function of the gourd is to lift the cross beam truss below.

A group of people slowly erect the column truss together, taking care not to push the column with too much force, and then fix the screws on the reverse head.

After the upright is erected, hook the hook under the hanging gourd to the beam underneath through the sling.

The 4 people slowly pull the hanging gourd together to pull the beam to the left and right positions of the person's head.

Install lighting and sound equipment on the beam.

Four people pull the hanging gourd together to a predetermined height to stop.

Tighten one end of the diagonal support to the column, and the other end to the horizontal support of the base, so that the aluminum alloy frame is completed.

Precautions before use

If you have to climb or work at height, please bring a good safety belt, all construction personnel must be equipped with helmets. In case of unconventional construction plans and sites or uncertainty about the hanging weight of the equipment, please contact the relevant sales staff for technical communication to ensure the safety of the use of equipment. Understand the use of equipment and the weather and wind conditions, and make the overall structure of the reinforcement program. Safety hanging weight for weight matching should pay attention to subtract the self-weight of climbing personnel, and attention to the shaking force of the shakeable lamps. Check the required equipment, such as the following problems, please use caution, and follow up or repair the equipment!

Check whether the frame of the aluminum stage is damaged and deformed, especially check whether the welding seam at the port is cracked.

Check whether the adjustable foot cups on the base and rocket feet can be rotated and smoothly.

Check whether the base plate on the foot cup is damaged and whether there are cracks in the welding.

Check the connection screws for rust, especially the threads on the bolts and nuts for damage and corrosion.

Connection screws connection parts using 4.8 level bolts and nuts, the recommended use of 8.8 level, such as missing or damaged should pay attention to the purchase of not less than 4.8 and the same type of bolts and nuts.

Electric hoist and controller energized for positive and negative running test.

Manual hoist need to pull the manual chain, observe is the manual zipper and load-bearing chain is running normally.

Check whether the aircraft belt is broken, corrosion.

Preparation and inspection of installation tools. Transportation and use of the process should pay attention to the protection of aluminum stage, as far as possible to prevent collision and scratch damage and corrosion of aluminum stage.

After use precautions

Warehouse environment requirements: away from chemicals, shelter from rain, dry and ventilated.

After the aluminum stage is used, all the connecting screws should be removed and kept in a single state.

Aluminum stage on the wire ties and other foreign objects clean up.

Aluminum stage is made of aluminum alloy, attention should be paid to the cleaning of the spoil on the lighting truss, after cleaning, rinse it with water and set up to dry.

Aluminum stage encounter pool water, rainwater and acidic and alkaline substances in use, should be cleaned and dried with plenty of water after use. And check the corrosion situation.

Aluminum stage should not be stored horizontally when it is put into storage. The truss should be placed vertically to facilitate the recovery of the lighting truss stress and prolong its service life.

When the manual/electric hoist is finished using, it should be properly placed and regularly maintained by adding lubricating oil and anti-rust oil to the hoist, and pay attention to the wear condition of the chain, please pay attention to the hoist instruction manual for more details.

The airplane belt is a fleece product and should be placed in a dry place after use to avoid high temperature baking. Do not continue to use and replace.

The Significance of the Use of Aluminum Stage

The shape of the aluminum stage can exist as a simple functional device or as a structural framework of the overall shape. On the basis of the frame of the aluminum stage, the decoration can be created to suit the theme of the stage. aluminum stage is very common in stage construction activities, the construction of the aluminum stage has a profound impact on the effect of the stage construction.

As part of the aluminum stage, the stage is first horizontal so that performers can perform safely and smoothly on the stage. The stage shape is usually built on the basis of the platform, the edge will generally do curved treatment, so that it will look much more beautiful, while the stage can also be made of glass tabletop as needed.

Aluminum stage is part of the stage shape, usually the background truss and lighting speakers support frame. Background truss as a background placed behind the stage can be extended to the sides. Different styles can be made according to requirements. Lighting and sound stands are usually set at the top and above the stage, surrounded by truss pillars, the top for hanging lights. In some theaters and large events, the truss is only part of the stage and is used only as a lighting stand. Lightweight trusses are set according to the contour of the stage, such as a T-stage, and trusses are also built above the extension for lighting components. In the case of irregularly shaped stages, please adjust accordingly. Trusses for large outdoor stages will be equipped with a specially shaped truss in the center of the stage to provide both decorative and lighting effects.

The choice of aluminum stage is very important in the process of our use. Generally superior aluminum stage is not easily deformed and has a certain bearing capacity, with good ability and balance in terms of earthquake and wind resistance. In the performance process can play a good use of lighting effects, its good stability can ensure that the lighting equipment in any position on the truss placement, to know, in the stage, different lighting effects can create an unusual spatial environment, but also to guide the realization of the audience, so as to better highlight the stage effect and enrich the artistic impact. Even more often, the lighting effects with the stage stunts, can make the whole show is fantastic.

Maintenance

Aluminum stage are used in many stages, and the scope of use is very wide, but after the lighting racks have been used for a long time, the aluminum stage racks need frequent maintenance, so as to ensure that the product can have a longer service life.

When building this stage venue, it is generally necessary to find a dry place to fix it. When using it, pay attention to details, check the shelf frequently, and eliminate some faults that occur. If it is a major fault, the stage should be notified in time. Lamp manufacturer for repairs.

After the warranty, the aluminum stage equipment company will repair it as soon as possible according to your own problems to ensure that it can be used normally. The light stand can also cooperate well with the stage sound and lighting equipment, providing a good light and sound guarantee for the party held on the stage, so it is very important to carry out regular maintenance and avoid contact with some chemically acidic items. In order to avoid some problems, regular maintenance of the light stand can play a very good role.

Our Certifications

productcate-1-1

FAQ

Q: What is the features of aluminum stage?

A: Easy to set up and disassemble, lightweighted, portable and modular design.

Q: What is the loading capacity of aluminum stage?

A: Our aluminum stage loading capacity is 750kg per square meters.

Q: What color can I have for the aluminum stage?

A: The stage deck can be various color, because we can provide deck carpet to adhesive on the top. most client choose black (the plywood topping is black) or red.

Q: Can you produce customized Aluminum Stage?

A: Yes, we support customization.

Q: What is aluminum stage made of?

A: The primary materials most commonly used for aluminum stage are Aluminum and Steel. Aluminum, because of its durability, light weight and ease of transport, is the optimum choice for use in concert or stage production. Its weight allows for a quick and easy setup and teardown.

Q: What is aluminum stage?

A: Generally, an aluminium stage truss system is a four-tube system connected together by a series of brackets that operate in a vertical and diagonal manner to support any type of weighted load, regardless of the direction of the force exerted on the truss system by the load .

Q: What size are aluminum stage?

A: Aluminum stage lighting trusses are more used in the sizes of 300*300MM, 400*400MM, 400*500MM, 400*600MM, 520*760MM, 600*760MM.

Q: How much weight can aluminum stage hold?

A: 500 lbs.

Q: How high is the aluminum stage?

A: Generally, the aluminum stage is built to 4-8 meters high.

Q: What is aluminum alloy stage material?

A: Plywood
Acrylic glass
Tempered glass
Aluminum sheet

Q: What are the dimensions of the aluminum alloy stage?

A: 22x1.22m
1.22x2.44m
1x2m
custom sizes

Q: What are the characteristics of aluminum alloy stage?

A: Conforms to ANSI/OSHA Requirements
Rugged Yet Easy to Handle
Many Uses
Easy Grip Vinyl Coated Handles

Q: What the procedures of setting aluminum stage indoors?

A: Measure the length and width of the ground and frame the stage area.
The conventional stage board is 1.22*1.22. According to the length and width, select the number of stage boards for construction.
After the stage is selected, consider whether a truss and stage are needed according to the lights on the spot and Background frame
If it needs to purchase a stage lighting truss, you need to consider the height of the indoor floor, and then determine the height of the truss.
The material stage can be steel stage and aluminum alloy stage, and the light truss can choose 300*300 aluminum alloy truss.
The quantity of accessories and collocation, such as the truss base, etc.

Q: what is the material for the aluminum stage?

A: Amost stage is made of aluminium alloy.

Q: What are the different types of aluminum stage?

A: There are several types of aluminum stage, the most popular being ladder, triangle and quad. Ladder truss is the cheapest and simplest form of truss, and is designed for light duty use, for instance the mounting of small lighting applications.

Q: What are the metal pieces on aluminum stage called?

A: Truss plates are staggered-tooth metal connector plates designed to connect wood truss members together. The teeth of these connector plates are punched in pairs at right angles to securely connect the pieces of rafter trusses or floor trusses at the joint, allowing for the transfer of loads through the structure.

Q: What is the capacity of aluminum stage?

A: As a general rule of thumb, aluminum stage can hold up to pounds (907 kg) of weight per 10-foot section.

Q: What is aluminum stag?

Q: What is the use of aluminum stage?

A: This Truss is used for Light, Sound, Exhibition, Event, Stage Shows, Fashion Shows, Decoration, Dj, Club etc. aluminum stage used for Maximum Load and Lighting the stage.

Q: How do you clean aluminum stage?

A: First, scrub the dirt and dust on the surface, second, choose a soft cloth and scrub lightly. Aluminum truss made of metal is also prone to rust, at this time, the anti-rust paint acts as a protective umbrella and a barrier between air and aluminum stage.

We're professional aluminum stage manufacturers and suppliers in China, specialized in providing high quality products and service. We warmly welcome you to buy custom made aluminum stage at competitive price from our factory. Contact us for more details.
